WTS is the exclusive representative in North Africa of Bright Automation which are the the leaders in providing fully wireless technology for artificial lift applications, in addition to VSDs, RPCs, inverters, and related monitor and control systems.
From the simplest to the most sophisticated, artificial lift control systems from Bright Automation are engineered to meet a wide range of operator and industry needs. Easy to install, maintain, and operate, all Bright systems are designed to optimize production as well as reduce power consumption, manpower requirements, and equipment wear.
You can Find:

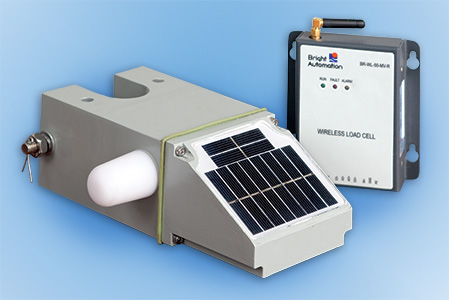

Featuring the latest in solar cell power and wireless technology, the Bright Wireless Load Cell redefines load cell performance and convenience. This wireless load cell transmits data via a 2.4GHz wireless digital communication protocol. Based on its unique wireless design, the Bright Load Cell provides easier, faster installation and reduces shutdowns associated with cable failure.
The receiving module output generates a standard 4-20mA or 0-10mV signal, making it useful as a replacement of conventional load cells. The load cell’s lack of wires and u-shaped structure provides for easy installation, repair, and maintenance, while its durable outer shell allows it to withstand harsh environments.
| ITEM | TECHNICAL PARAMETERS |
UNIT |
|---|---|---|
| Analog output (Model MA) | 4-20 | mA |
| Analog output (Model MV) | 0-10 | mV |
| Communications connections | RS232 | / |
| Receiving module power supply | 9~36 | VDC |
| Range | 0~133/0~222 | KN |
| Allowed overload | 150 | %F-S |
| Precision | 0.5 | %F-S |
| Communication distance | 10 | m |
| Communication frequency | 2.4 | GHz |
| Transmitting power | 0 | dBM |
| Insulation resistance | ≥2000 | MΩ |
| Operating temperature | -20~+60 | °C |
| Storage temperature | -20~+60 | °C |
| IP grade | IP67 | / |

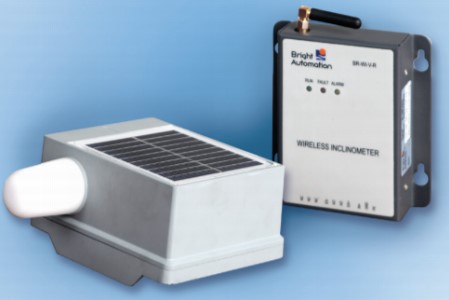

The transmitting module of the Bright Wireless Inclinometer uses solar grids to generate power that is stored in a lithium battery, allowing the inclinometer to be fully solar powered. This inclinometer employs 2.4GHz wireless digital communication technology to produce a real-time wireless angle displacement signal transmission. The receiving module output is a standard horizontal 4v, 30m v/°RS232, enabling convenient replacement of traditional inclinometers.
Featuring a built-in magnet attached to the top of the walking beam, the Bright Wireless Inclinometer enables easy and safe installation
and removal.
| ITEM | TECHNICAL PARAMETERS |
UNIT |
|---|---|---|
| Analog output (Model MA) | 2.65~5.35 | mA |
| Analog output (Model MV) | Horizontal output 4v, 30m v/o |
/ |
| Communications connections | RS232 | / |
| Receiving module power supply | 9~36 | VDC |
| Range | -45~45 | degree |
| Precision | ±0.5 | degree |
| Linearity | 0.5 | %F•S |
| Communication distance | 10 | m |
| Communication frequency | 2.4 | GHz |
| Transmitting power | 0 | dBM |
| Insulation resistance | ≥2000 | MΩ |
| Operating temperature | -20~+60 | °C |
| Storage temperature | -20~+60 | °C |
| IP grade | IP67 | / |
